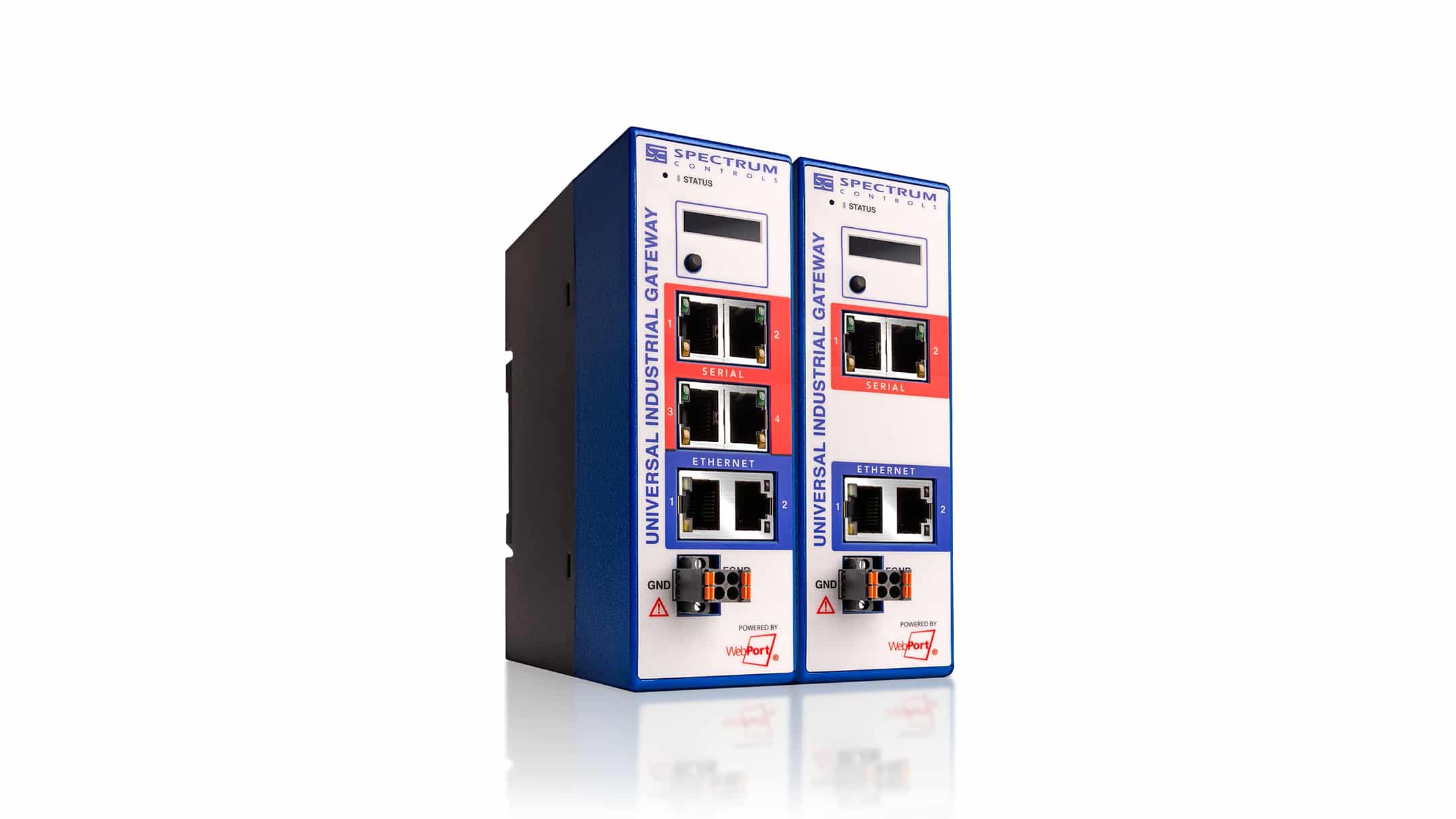

Universal Industrial Gateway

Universal Industrial Gateway

Industrial Protocol Gateway
Jump to Documents & Downloads ↓
Jump to Ordering Information ↓
PLC Programming
None
Setup Time
As fast as 1 hour
Dual-Subnet
Yes
Available protocols
12

Key Features

As much as half the cost as a typical gateway
No PLC Programming - No ladder logic, no I/O changes
Browser-Based Interface - No software to install, no extra cost
Dual subnet ccapable
Up to 12 Protocols in one gateway - Ready for multiple devices or redeployment
Built-in contextual help - Fully searchable documentation with step-by-step guidance

Supported Protocols

P1 + P2
  • EtherNet/IP (Client/Server)
  • EtherNet/IP-PCCC (Client/Server)
  • Modbus TCP (Client/Server)
  • Modbus RTU (Client/Server)
  • Modbus ASCII (Client/Server)
  • DirectNET (Client)
  • CCM (Client)
  • TI-HostLink (Client)
P2 Only
  • DF1-PCCC (Full-duplex, P2P)
  • DF1-CIP (Full-duplex, P2P)
  • PPI (Client)
  • S7comm (ISOTCP) (Client)

P1 models can be upgraded to P2 via the WP-G-UPG-P2 purchasable upgrade.

Universal Industrial Gateway
More gateway for less money
See how the UIG compares to a typical one-to-one gateway for the most common integration scenario.
EtherNet/IP ⟷ Modbus RTU
Typical One-to-One Gateway
Single-protocol bridge
~$1,000
avg. street price
✕
Configuration
Proprietary software required
✕
PLC changes
Ladder logic edits often needed
✕
I/O tree
Changes typically required
✕
Setup time
Multiple hours including software install
✕
Protocols
1 pair — buy another if needs change
✕
Ports
1 Ethernet, 1 Serial
Universal Industrial Gateway
Spectrum Controls UIG
$650
base model
Save ~$350
✓
Configuration
Browser-based — no software to buy or install
✓
PLC changes
None — no ladder logic required
✓
I/O tree
No changes required
✓
Setup time
As fast as 1 hour, start to finish
✓
Protocols
8 protocols ready — upgrade to 12 available anytime
✓
Ports
2 Ethernet (dual-subnet), 2 Serial (base model)
Lower price. More capability. Faster setup.
The UIG handles the same EtherNet/IP ↔ Modbus RTU conversion — without the software, the ladder logic changes, or the cost.
~$350 typical savings
What you're also getting — at no extra cost
7 additional protocols included
Modbus TCP, Modbus ASCII, EtherNet/IP-PCCC, DirectNET, CCM, TI-HostLink, and more are included on the base model at no extra cost.
Upgradeable to 12 protocols
Need DF1, PPI, or S7comm down the road? A purchasable upgrade unlocks the full protocol set on the same hardware, no new device required.
Dual-subnet capable
Bridge across network segments without additional hardware. Both Ethernet ports can operate on separate subnets if needed.
Multiple devices simultaneously
Not limited to a single one-to-one connection. Connect and bridge multiple devices at once across Ethernet and serial.
Redeployable for future projects
A single-protocol gateway is a single-use device. The UIG can be repurposed for a completely different integration scenario, adding value to your investment.
Built-in contextual help
Fully searchable documentation with step-by-step guidance built directly into the configuration UI.

Try it Out For Yourself

Interactive Demo
You're integrating legacy equipment — a MicroLogix 1100 running Modbus RTU needs to share data with a CompactLogix on EtherNet/IP. The Universal Industrial Gateway bridges them in minutes, with no ladder logic changes and no software to install. Try it yourself.
This is one example scenario. The UIG supports up to 12 protocols and can bridge a wide range of device combinations.
Note: This is a simplified, interactive workflow demo. Although a simulated experience, it closely resembles a typical user experience and follows the same core steps.
🏷TAGS
⚙SETUP
♥DIAGNOSTICS
🔧MAINTENANCE
?HELP
WebPort
Devices
Tag Maps
Universal Industrial Gateway
Demo

Product Videos

Case Studies

Integrate Legacy Equipment Into Ethernet/IP
Integrate Legacy Equipment Into Ethernet/IP
Value Proteins Seamlessly Integrates Legacy Modbus RTU Devices Into Modern Ethernet/IP Control Architecture
Download PDF

Ordering Information

Part NumberDescriptionList Price (USD)

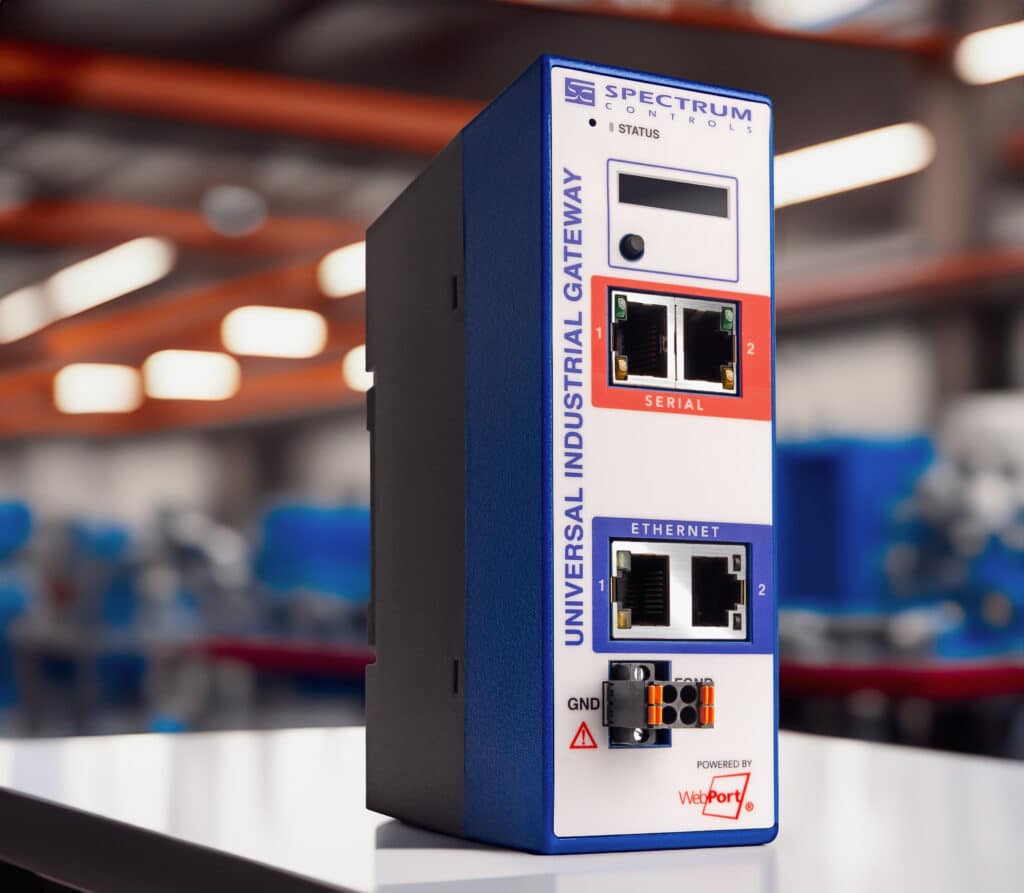

WP-G-222-P1Industrial Protocol Gateway - 2 Serial, 2 Ethernet$650
WP-G-222-P2Industrial Protocol Gateway - 2 Serial, 2 Ethernet w/ Protocol Upgrade$850
WP-G-242-P1Industrial Protocol Gateway - 4 Serial, 2 Ethernet$950
WP-G-242-P2Industrial Protocol Gateway - 4 Serial, 2 Ethernet w/ Protocol Upgrade$1,150

Documents & Downloads

Download the Latest Firmware Here
Document Finder

Ready to add this to your system?

Request a quote or contact our team for pricing, availability, and application support.

Add to Quote View My Quote
Contact Us
